Main Features：
Mechanical structure：

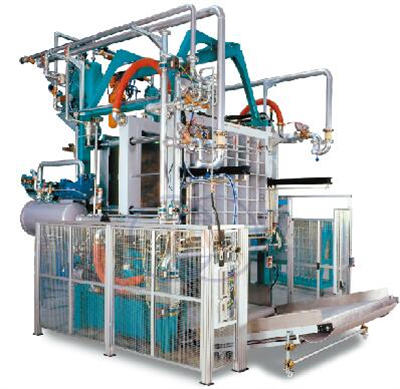

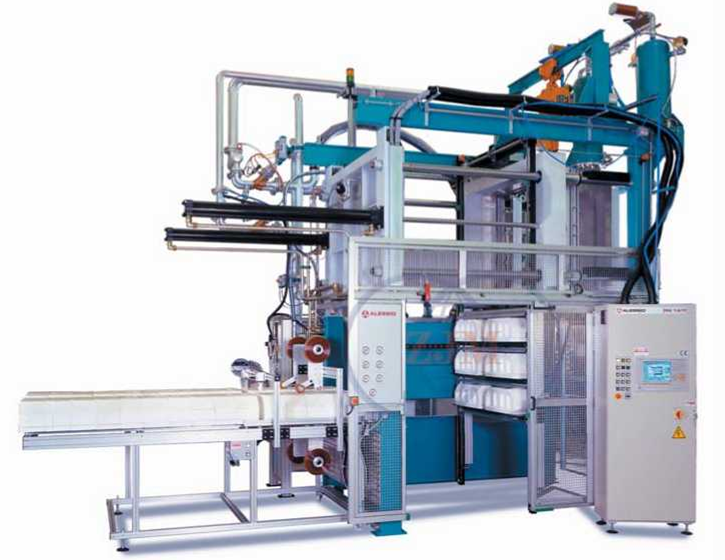

1. This equipment is a new energy-saving and economical equipment formed on the basis of the basic type vacuum forming machine combined with the Italian high-speed equipment.
2. It is welded of thick-walled square tube and high-quality Q235 steel plate. Tempered ny the CNC machining center before processing to prevent the deformation of the template,to improve the dimensional accuracy and prolong the service life of the equipment.
Feeding system：
1. Vertical double barrel ; with three feeding modes: normal pressure, high pressure and vacuum; equipped with automatic material level detection and automatic replenishment of raw materials; the double barrels use discs rotate to discharge, and have many discharge holes.
Steam system：
1. The steam pipeline adopts the Italian large-diameter air intake method, and the valve and pipeline are designed in the position closest to the mold to reduce the loss of steam in the pipeline and improve the energy saving efficiency.
2. Balance valve control and electric contact pressure gauge control, adjust the inlet pressure of the steam valve through the cavity pressure detection balance valve to ensure the same heating pressure and temperature in the cavity each time, save steam and reduce the loss by 20%.
Cooling system：
1. High-performance horizontal vacuum system is adopted, and the vacuum system is equipped with a large-flow spray system (the traditional equipment only sprays the surface of the mold to cool), so that the rising steam can be fully integrated into the water when it is cooled, and the condensation efficiency is improved, which greatly improves the vacuum pump's air suction efficiency, and reduced EPS cooling time.
Hydraulic system：
1. Adopt domestic famous brand hydraulic system, the mold opening and closing speed is increased from 160mm/s to 260mm/s.
2. Cooperate with the encoder to control the distance of mold opening and closing, and the speed conversion of the hydraulic system has no pause and vibration.
3. The equipment adopts double-cylinder hydraulic clamping structure, which has high clamping pressure, reliable and stable use and long service life.
Electrical System：
1. The machine is controlled by PLC and touch screen, and all processes such as mold clamping - feeding - heating - heat preservation - cooling - demolding - mold opening are fully automatic.
2. The electrical components are all world-renowned brands, such as Siemens, Mitsubishi, Schneider, Omron, etc., to improve the stability of the equipment.
3. The mold chamber has a pressure sensor, which can control the pressure of the steam more accurately, making the equipment more energy-saving, and at the same time improving the efficiency of the machine.
4. The machine adopts an accurate rotary encoder to control the stroke of the machine to ensure that the machine stays the same every time, so that the weight of the raw materials added into the mold chamber is same each time; to ensure the opening and closing distance when demoulding, so that the products fall off easily.
Type A equipment is economical type, using domestic high-quality brand components, valves, motors, pipes, etc.
Type B equipment is high-quality type, using world-renowned brand components, valves, motors, pipes, etc.

Item	Unit	EPSSM1200H	EPSSM1400H	EPSSM1700H	EPSSM1800H	EPSSM2000H
Standard Dimensions of Mold	mm	1200×1000	1400×1200	1750×1450	1800×1600	2040×1800
Dimensions of Product	mm	1000×850	1200×1050	1550×1250	1650×1450	1850×1650
Height of Product	mm	350	350	350	350	350
Interval	mm	150-1200	200-1400	200-1400	200-1400	200-1400
Steam Inlet DN	mm	DN80	DN100	DN100	DN100	DN100
Steam Comsumption	kg/kg	（8-10T）Steam of 1T material
Cooling Water Inlet DN	mm	DN80	DN80	DN80	DN80	DN80
Cooling Water Comsumption	Kg/cycle	40-130	50-170	60-180	70-190	80-200
Compressed Air Inlet DN	mm	DN65	DN65	DN65	DN65	DN65
Compressed Air Comsumption	m3/cycle	1.5	1.8	2.5	2.2	3
Power	KW	10	11	13.7	14	16.5
Molding Period	s	60-100	70-130	70-130	80-140	100-180
Machine Size	mm	4400×2100×3150	4500×2300×3500	4600×2550×4000	4800×2700×4000	5000×2900×4000
Weight	kg	4200	4800	5800	6800	7000

Company and service advantages:

1.The company workshop 40,000 square meters, has introduced the first-class multi-station machining center, CNC lathes, CNC milling machines and other high-precision processing equipment. Such as the value of 4.5 million yuan 3mx8m gantry machining center, and the value of 300 million yuan 2.5 mx12m gantry milling machine.

2.The company has a professional The Adjuster team, 24 hours to provide uninterrupted after-sales service.
(1) Installation and debugging
Equipment arrived at the customer workshop, according to the flat layout of our equipment. We will arrange experienced technicians to install, debug and test-produce the equipment, and make the equipment reach the rated production capacity of the production line.
(2) Training
Our company provides technical training for our customers. The training includes the structure and maintenance of the equipment, the control and operation of the equipment, experienced technicians will guide and establish the training program. After training, the buyer's technical personnel can master the operation and maintenance of the equipment, can adjust the process and deal with different failures.

3.After-sales quality problems within 2 hours to answer, if the telephone video guidance can not be solved, domestic 24 hours to send engineers to the site to solve the problem.

4. Factory direct sales price concessions, 40,000 square meters factory, 20 years of Export Enterprises, CE certification, patents more than 50 items.
